שלט אלחוטי לפתיחת שערים

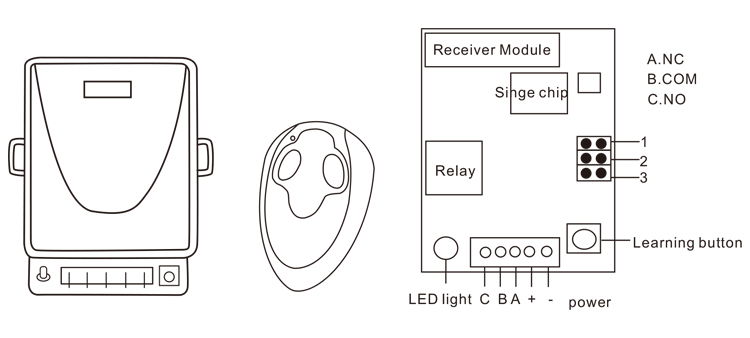

I. Main technical indexes www.S4A.com.cn Two channel Wireless Intelligent Receiving Receiver EB-405-2 Working temperature:-40℃-+80℃ Sensitivity: ≤-105dBm Frequency: 315MHz, 433MHz (optional) Contact current: ≤10A Voltage: DC12V, DC24V (optional) Static current: ≤ 9mA Size:62x43.5x30mm Output voltage: AC or DC (optional) Receiver capacity:30(learning &fixed code)、6 (rolling code) IV.Wiring Diagram II.Output mode HS1527: A.Signal 3s--jumper in 1, disconnect 2,3 B.Signal latch--jumper in 2, disconnect 1,3 C.Signal momentary--jumper in 3, disconnect 1,2 D.Signal toggle--1.2.3 unconnected III. Methods and steps for learning and clearing code Learning code & fixed code: Press "Learning" button on the receiver, release it until LED light flickers, Receiver in learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver. When LED on Receiver flickers 5 times and then goes out, it indicates Learning has been done. It can learn about as much as 30 pieces of Remote control of the same mode. If Remote control is lost and wanting to make it invalid totally, press "Learning" button (more than 8s) until LED goes out, then Receiver will eliminate all contents automatically. If want to reuse it, just learning one more time again. Rolling code: Press "Learning" button on the Receiver, release it until LED light flickers, Receiver in First Learning status (LED goes out this moment), then press related button on Remote control to monitor this Receiver, LED light is flickering slowly all the time, this indicates First Learning has been done; Re-press Learning button on Receiver, release it until LED flickers, this indicates in Second Learning status (LED goes out), press the same button on Remote control, LED will flickers 5 times quickly, this indicates Learning has been down. It can learn about as much as 6 pieces of Remote control of the same mode. If Remote control is lost and wanting to make it invalid totally, press "Learning" button (more than 8s) until LED goes out, then Receiver will eliminate all contents automatically. If want to reuse it, just learning one more time again.
